The Custom Origin HTTP Request Headers feature allows you to rewrite HTTP header fields in requests forwarded from Security CDN (SCDN) edge nodes to the origin. This enables you to attach specific request parameters to meet customized business needs.

What is an Origin Request?

When a user accesses a resource that is not cached at the edge node, the node forwards the request to the origin server. This forwarded request is known as an origin request.

Notes:

• This feature only affects origin requests from Security CDN edge nodes, and does not affect responses directly returned to the client by edge nodes.

Origin Request Header Fields

Header	Description	Matching Rules
X-Real-port	The source port used by the client when initiating the request.	$remote_port
X-Request-Id	A unique identifier for the request, used for tracing and log correlation.	$request_id
X-Req-Start-Time	The timestamp when the Security CDN edge node started processing the request.	$request_start_time
Client-Ip	The client’s real IP address.	$remote_addr
Client-Scheme	The protocol type used by the client request, such as HTTP or HTTPS.	$scheme
X-Request-Method	The HTTP method used by the client to initiate the request, such as GET or POST.	$request_method
X-Request-Uri	The full URI path of the client request.	$request_uri
X-Country-Code	The client’s country ISO code (e.g., CN, US).	$geoip_country_code
X-Country-Name	The full name of the client’s country (e.g., China, United States).	$geoip_country_name
X-City	The name of the city from which the client request originated.	$geoip_city
Accept-Encoding	Indicates the content encoding types supported by the client browser.	Custom value: 1–1000 characters, no Chinese
Accept-Language	Specifies the natural languages the client can understand and their preference order.	Custom value: 1–1000 characters, no Chinese
User-Agent	Identifies the client’s OS and version, CPU type, browser and version, rendering engine, language, and plugins.	Custom value: 1–1000 characters, no Chinese
Content-Type	Specifies the media type and character encoding of the request body.	Custom value: 1–1000 characters, no Chinese
Access-Control-Expose-Headers	Indicates which response headers are accessible to scripts running in the browser during cross-origin requests.	Custom value: 1–1000 characters, no Chinese
Custom	Supports custom request headers beyond the predefined ones.	Header name: 1–100 characters, llowed characters are letters, digits, hyphens (-), and underscores (_); no Chinese Value: 1–1000 characters, no Chinese

Unsupported Standard Headers

The following standard headers are not supported for modification in origin HTTP requests:

www-authenticate	age	pragma
early-data	save-data	etag
if-unmodified-since	accept	access-control-allow-origin
origin	content-disposition	content-language
x-forwarded-proto	referer-policy	range
cross-origin-opener-policy	expect-ct	x-content-type-options
x-powered-by	sec-fetch-site	last-event-id
report-to	sec-websocket-key	sec-websocket-version
date	retry-after	service-worker-allowed
x-firefox-spdy	x-ua-compatible	authorization
cache-control	warning	content-dpr
viewport-width	if-match	vary
accept-charset	access-control-max-age	access-control-allow-credentials
timing-allow-origin	content-length	content-location
via	allow	if-range
cross-origin-resource-policy	feature-policy	x-download-options
x-xss-protection	sec-fetch-mode	nel
transfer-encoding	sec-websocket-extensions	accept-push-policy
large-allocation	signature	sourcemap
x-pingback	max-age	proxy-authenticate
clear-site-data	accept-ch	dpr
width	if-none-match	connection
expect	access-control-allow-headers	access-control-request-headers
dnt	forwarded	from
server	content-range	content-security-policy
strict-transport-security	x-frame-options(xfo)	public-key-pins
sec-fetch-user	ping-from	te
sec-websocket-accept	accept-signature	link
signed-headers	upgrade	x-requested-with
proxy-authorization	expires	accept-ch-lifetime
device-memory	last-modified	if-modified-since
keep-alive	max-forwards	access-control-allow-methods
access-control-request-method	tk	content-encoding
x-forwarded-host	host	accept-ranges
cross-origin-embedder-policy	content-security-policy-report-only	upgrade-insecure-requests
x-permitted-cross-domain-policies	public-key-pins-report-only	sec-fetch-dest
ping-to	trailer	sec-websocket-protocol
alt-svc	push-policy	server-timing
x-dns-prefetch-control	x-robots-tag

Configuration Guide

1. Log in to the Security CDN Console.

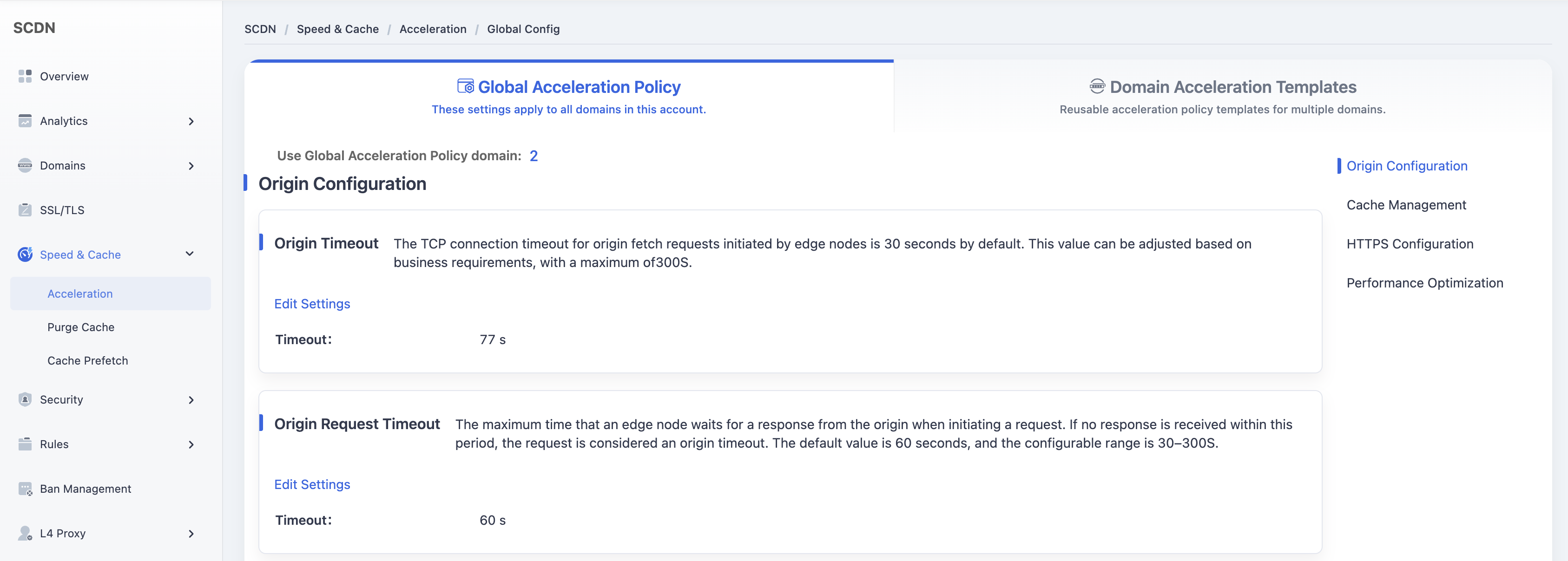

2. In the left navigation bar, go to Speed & Cache > Acceleration to enter the Global Acceleration Policy page.

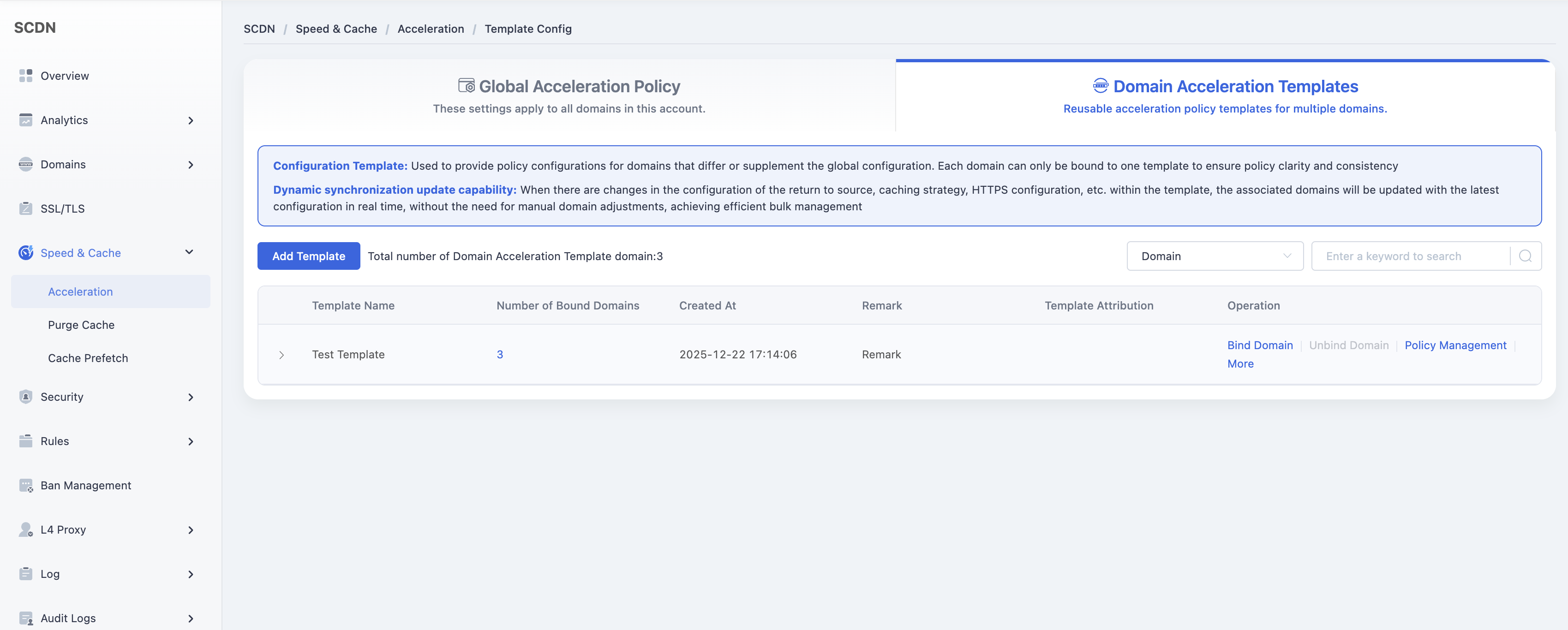

3. Click the Domain Acceleration Template tab at the top to switch to the template management page.




4. In the template list, find the template you want to configure and click Policy Management in the Actions column.

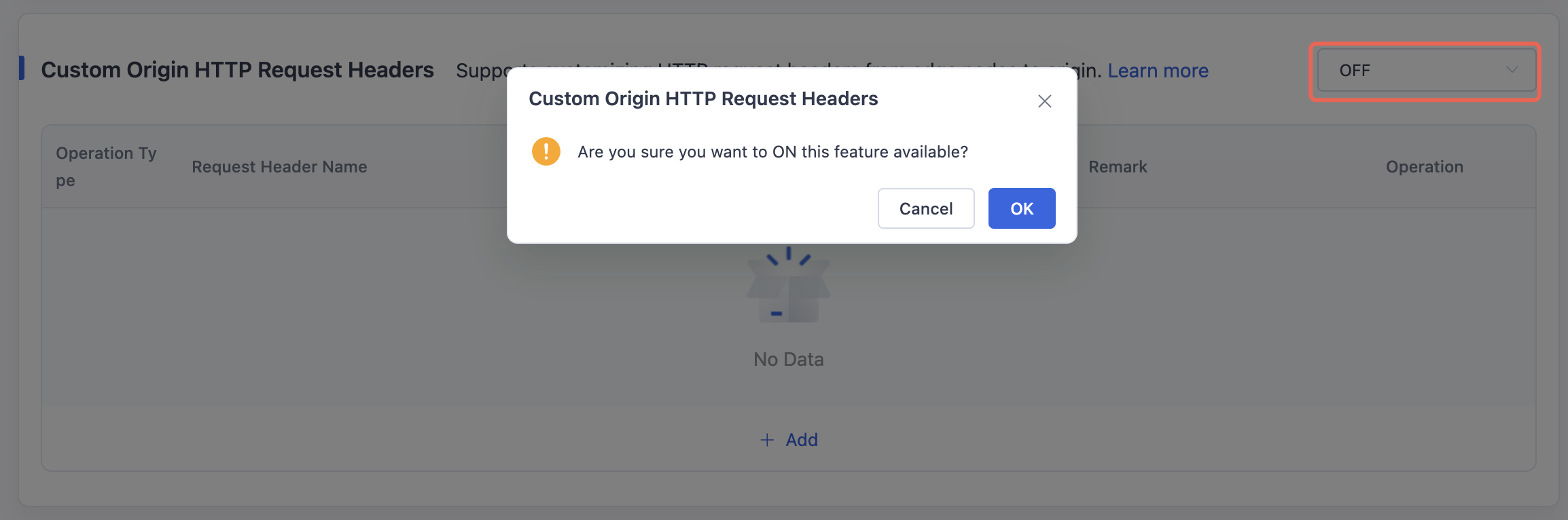

5. Scroll down to the Origin Configuration - Custom Origin HTTP Request Headers module and enable the feature.

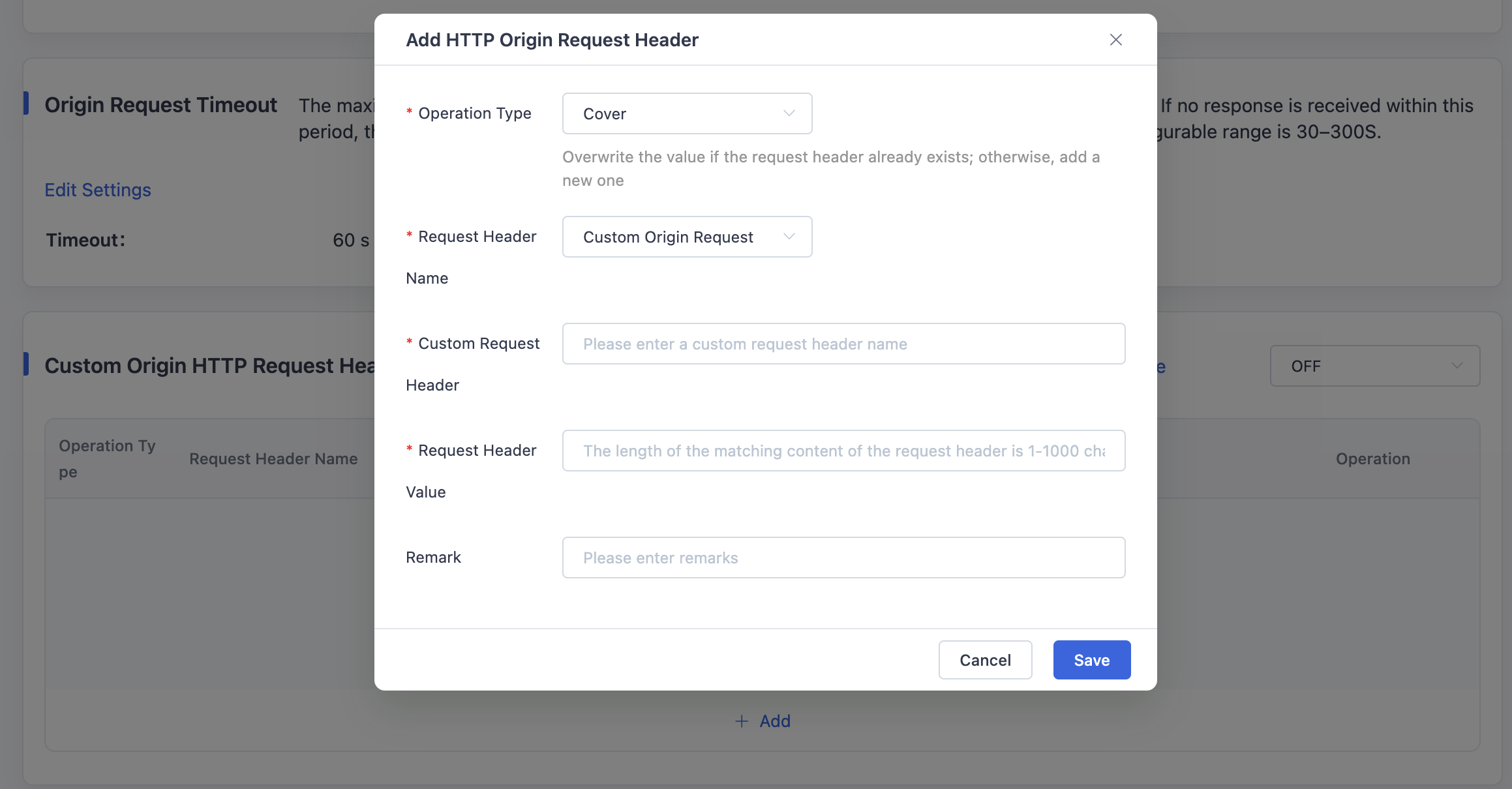

6. Click the Add button to configure custom origin request header rules.




7. Save the configuration to apply the changes to the selected template.
