Security CDN provides an online Log Query feature, enabling users to quickly locate and filter WAF attack logs directly within the console—without downloading full log files. This supports faster issue diagnosis and initial investigation.

Key Capabilities

• Multi-dimensional Filtering & Combined Search
  Enables precise filtering based on time range, source IP, request path, status code, attack type, risk level, and more.
• Full-text Keyword Search
  Allows fuzzy keyword matching in fields such as URI, User-Agent, Referer, and request parameters to quickly locate suspicious behavior.
• Detailed View of Single Log Entry

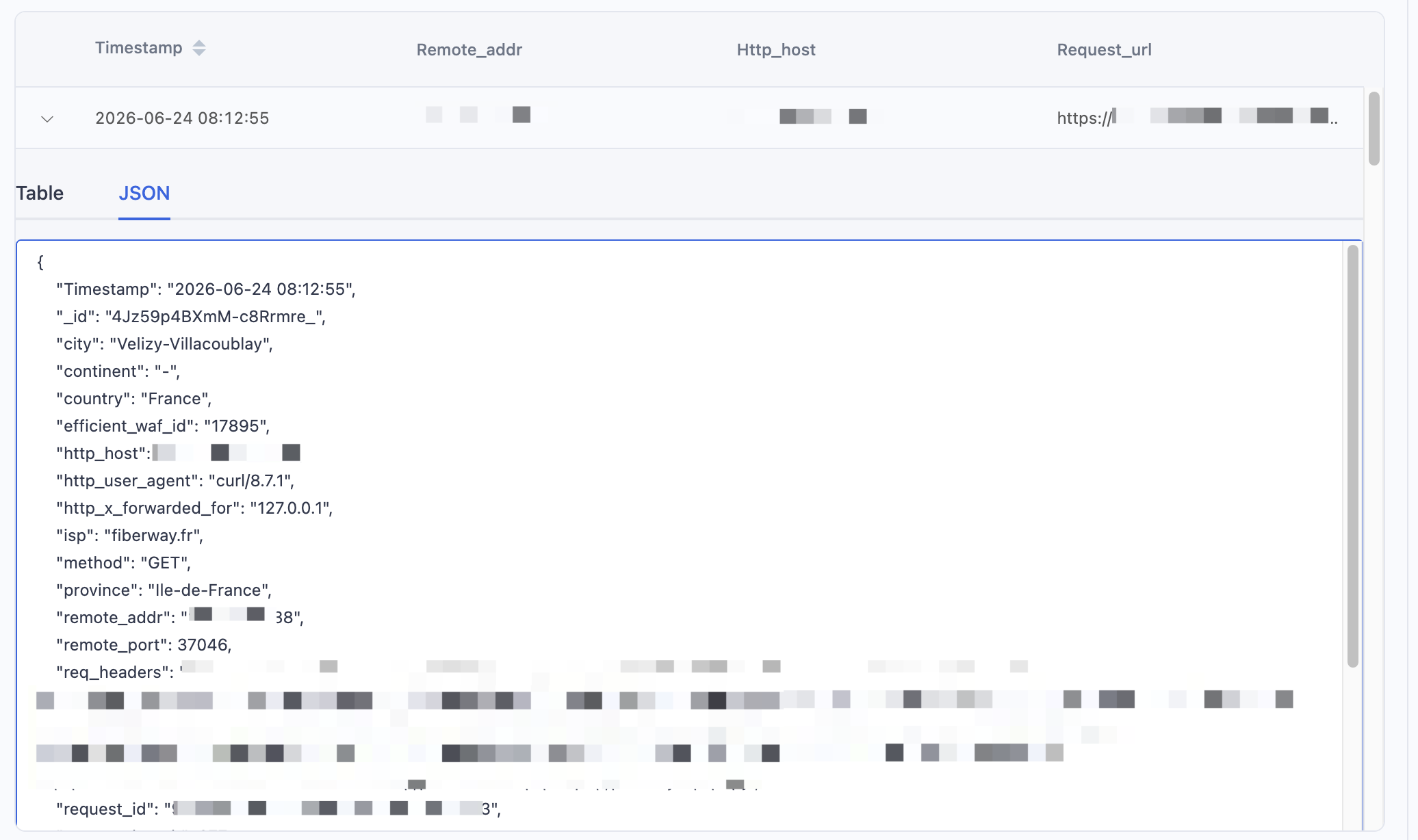

  Users can expand individual log records to view the complete request and defense handling details for accurate security analysis.


Guide: Conditional Filtering in Log Query

1. Log in to the Security CDN Console.

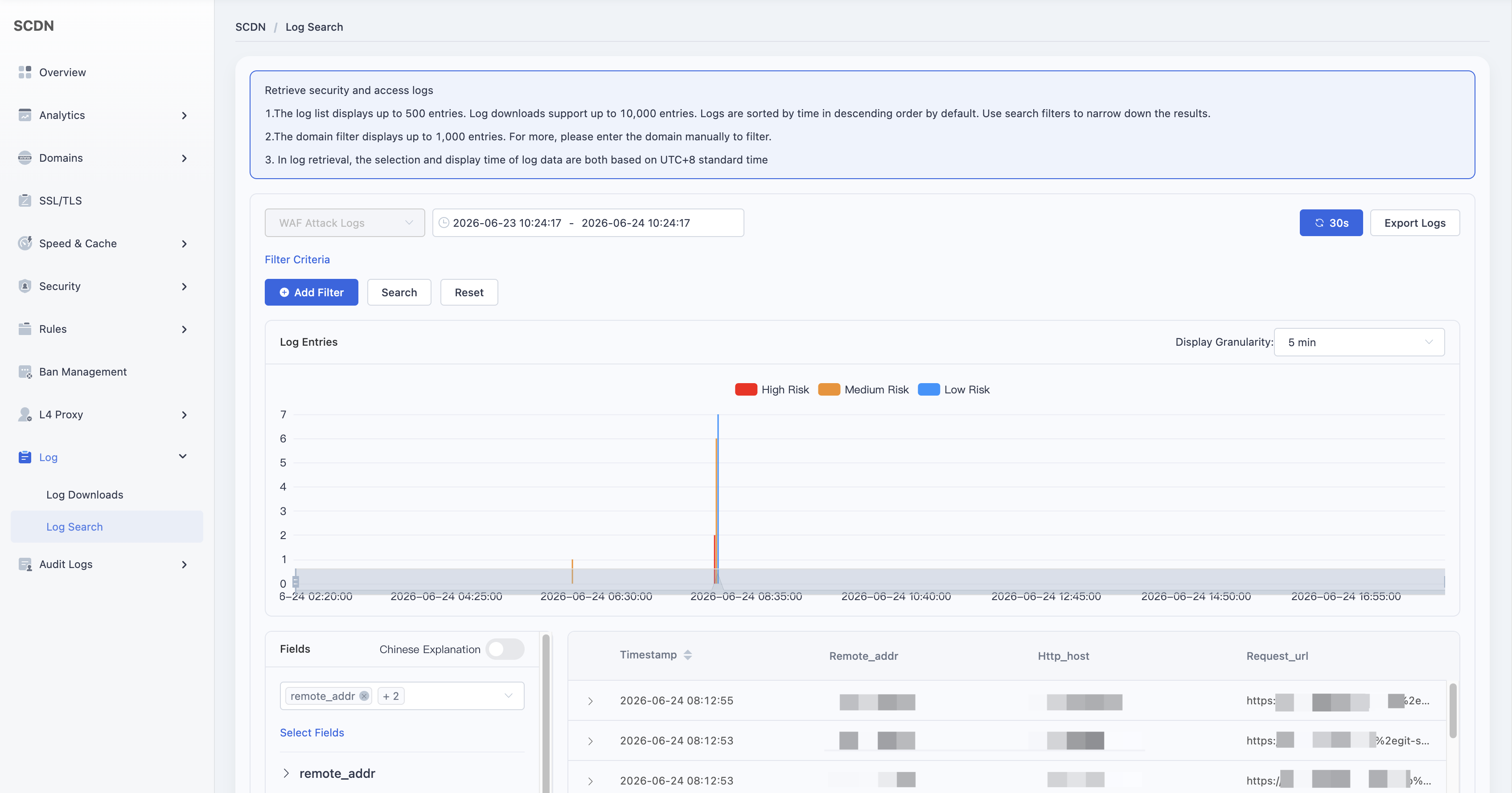

2. In the left navigation pane, go to Log > Log Query.




3. By default, the system loads log data from the last 24 hours.

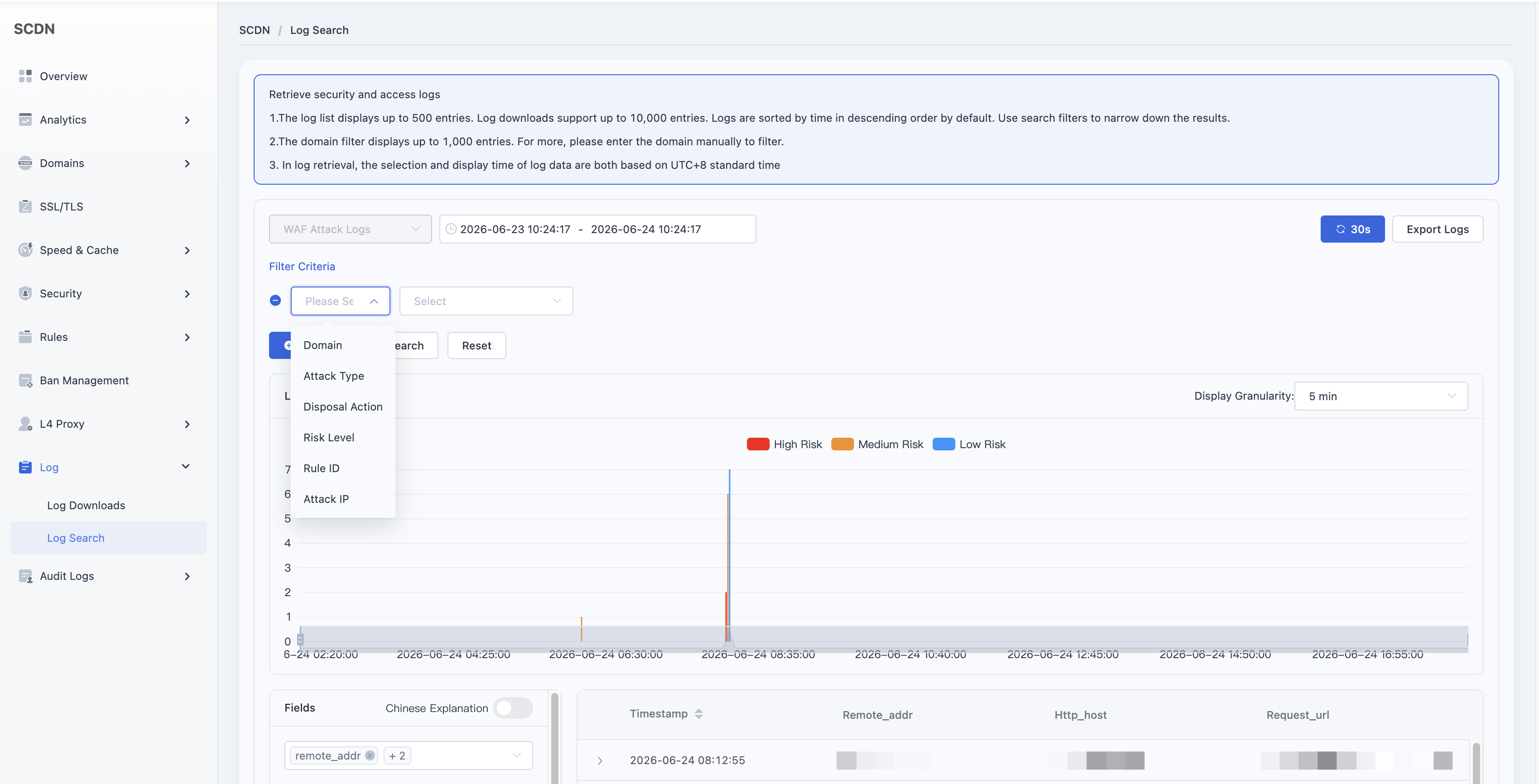

4. Use the filter fields to create complex queries by combining:

   • Domain
   • Attack Type
   • Mitigation Action
   • Risk Level
   • Rule ID
   • Attacker IP




5. After specifying the filtering conditions, click Search.

6. The result set displays the following by default:

   • Timestamp
   • Attacker IP
   • Target Domain
   • URL

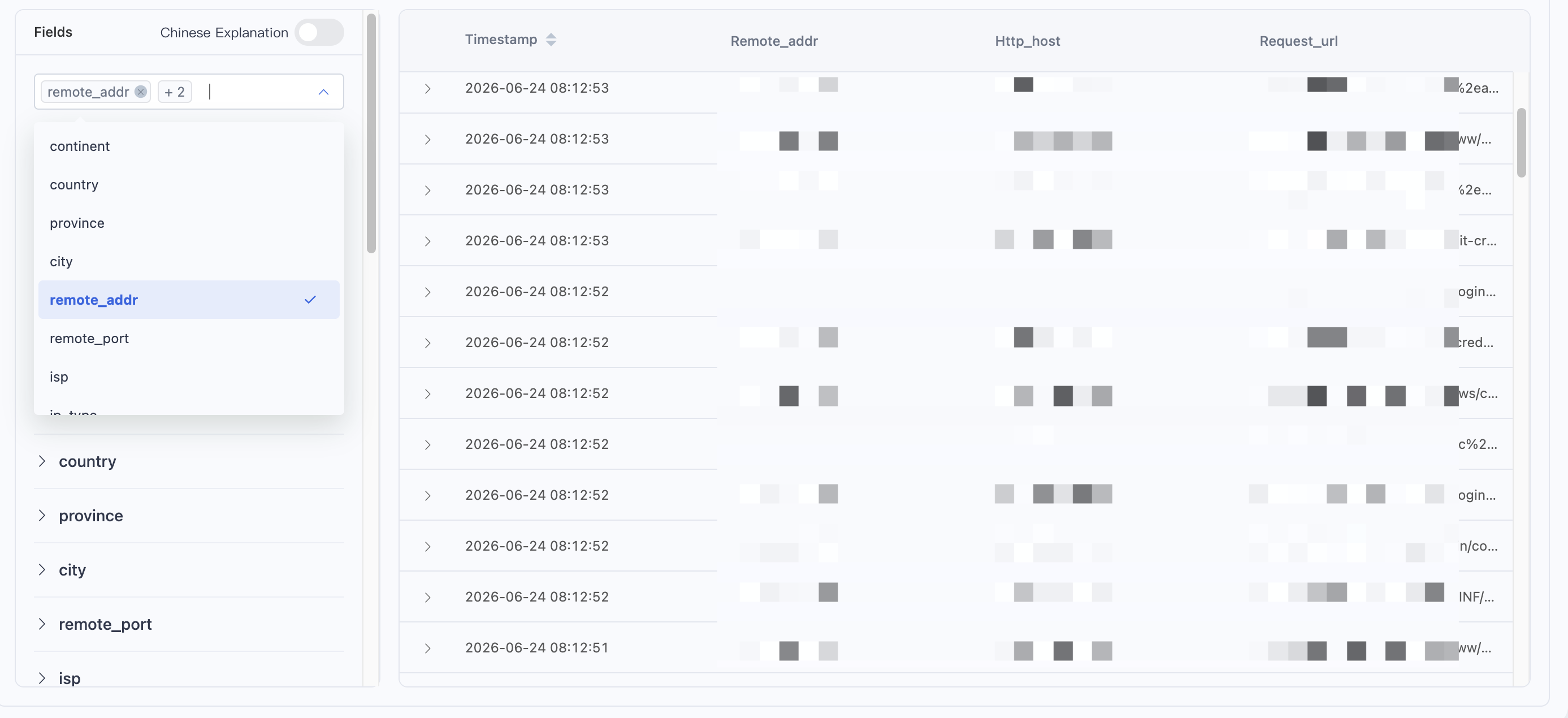

7. Use the Field Selector in the bottom-left to customize displayed fields (up to 27 options), including:

   • Continent
   • Country
   • Target Source Port
   • User-Agent
   • Rule ID
   • Attack Payload
   • Attack Category

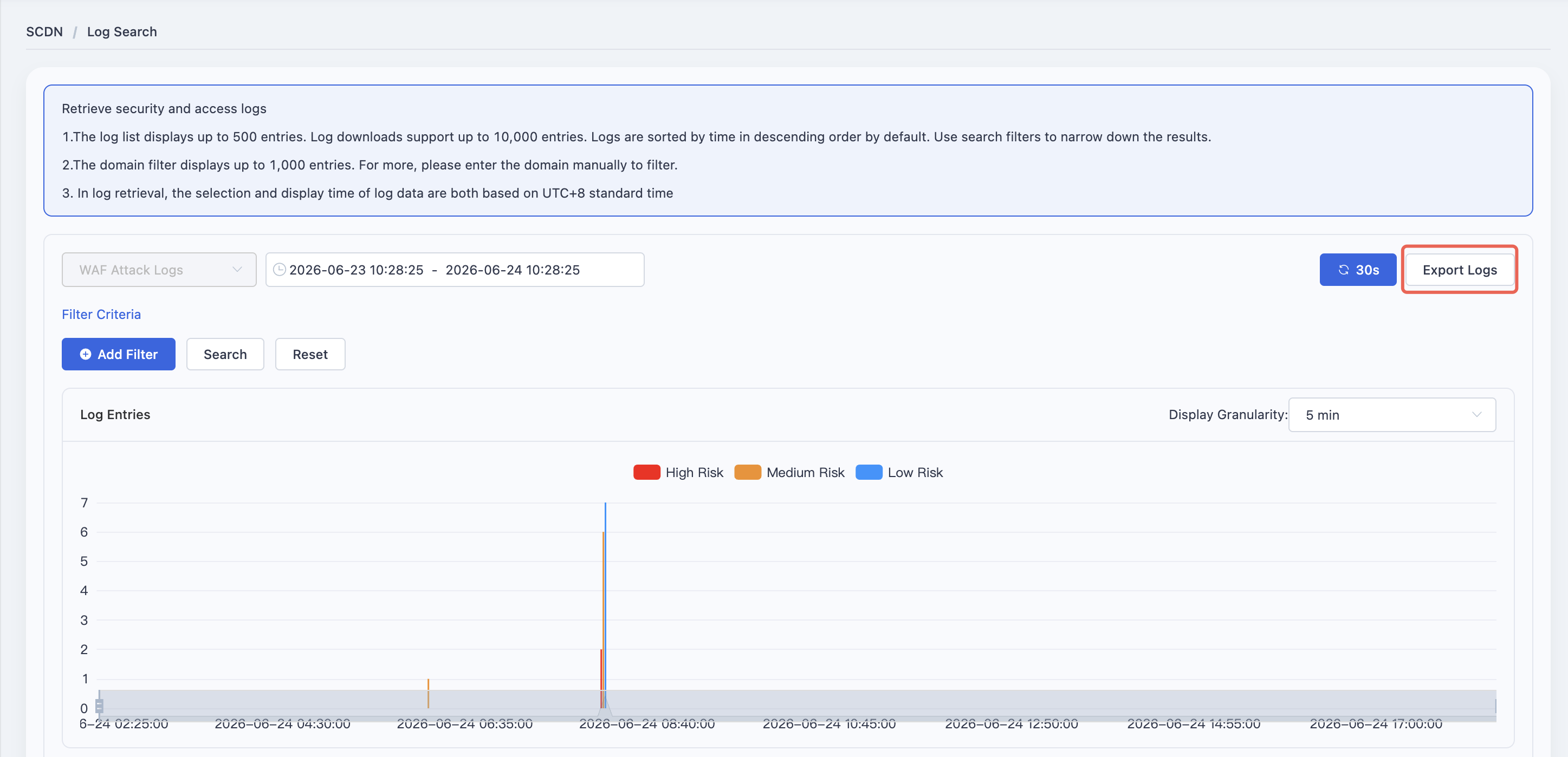

8. After reviewing the results, click the Download button in the upper-right corner to export matched log entries.
