EdgeNext OSS API User Guide

EdgeNext OSS API and S3 Client Usage Guide

S3 Client Usage

S3 Browser

Introduction

S3 Browser is a graphical file management tool for the Windows platform, designed for browsing and managing cloud-based object storage resources. It supports intuitive file operations such as uploading, downloading, deleting, copying, moving, and renaming. The tool aims to provide users with an efficient and user-friendly experience for managing cloud storage.

Download and Installation

Download URL: S3 Browser
Installation: Click "Next" throughout the installation of s3browser-7-6-9.exe.

Configuration

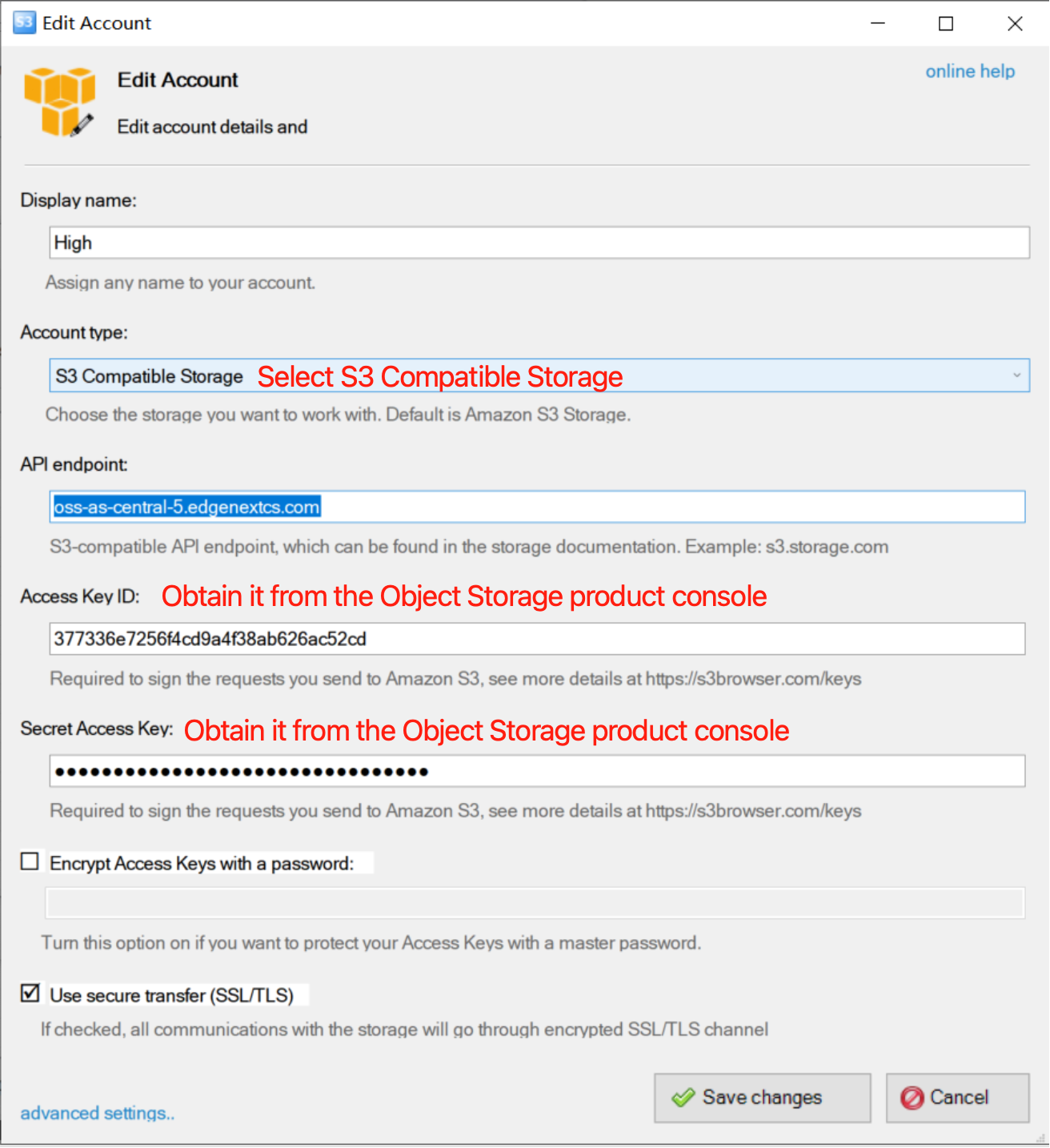

On first use, configure the storage account by providing the storage address and authentication information (Access Key and Secret Key).

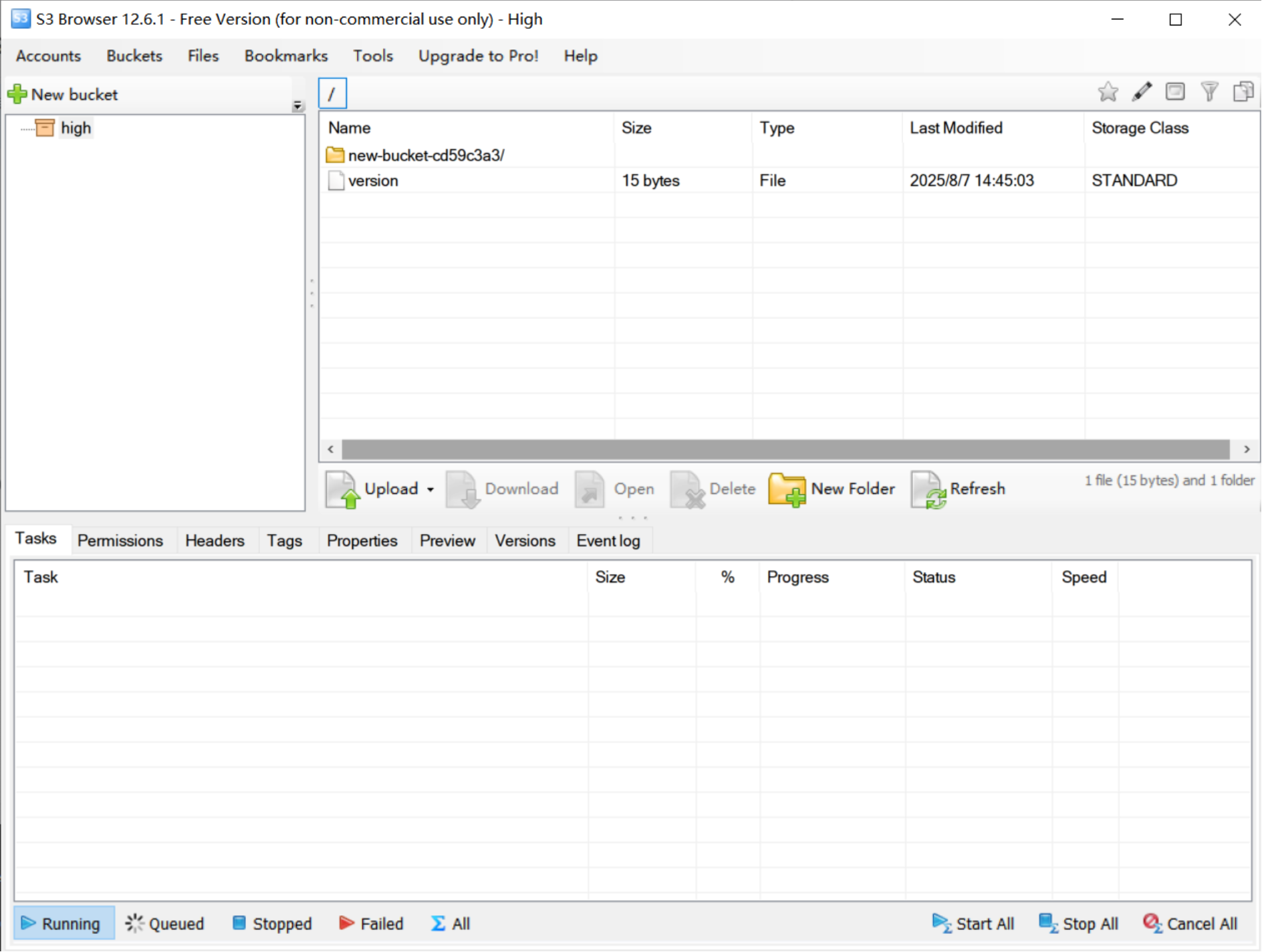

After saving and creating, you will be able to view the storage content and perform operations.

Usage

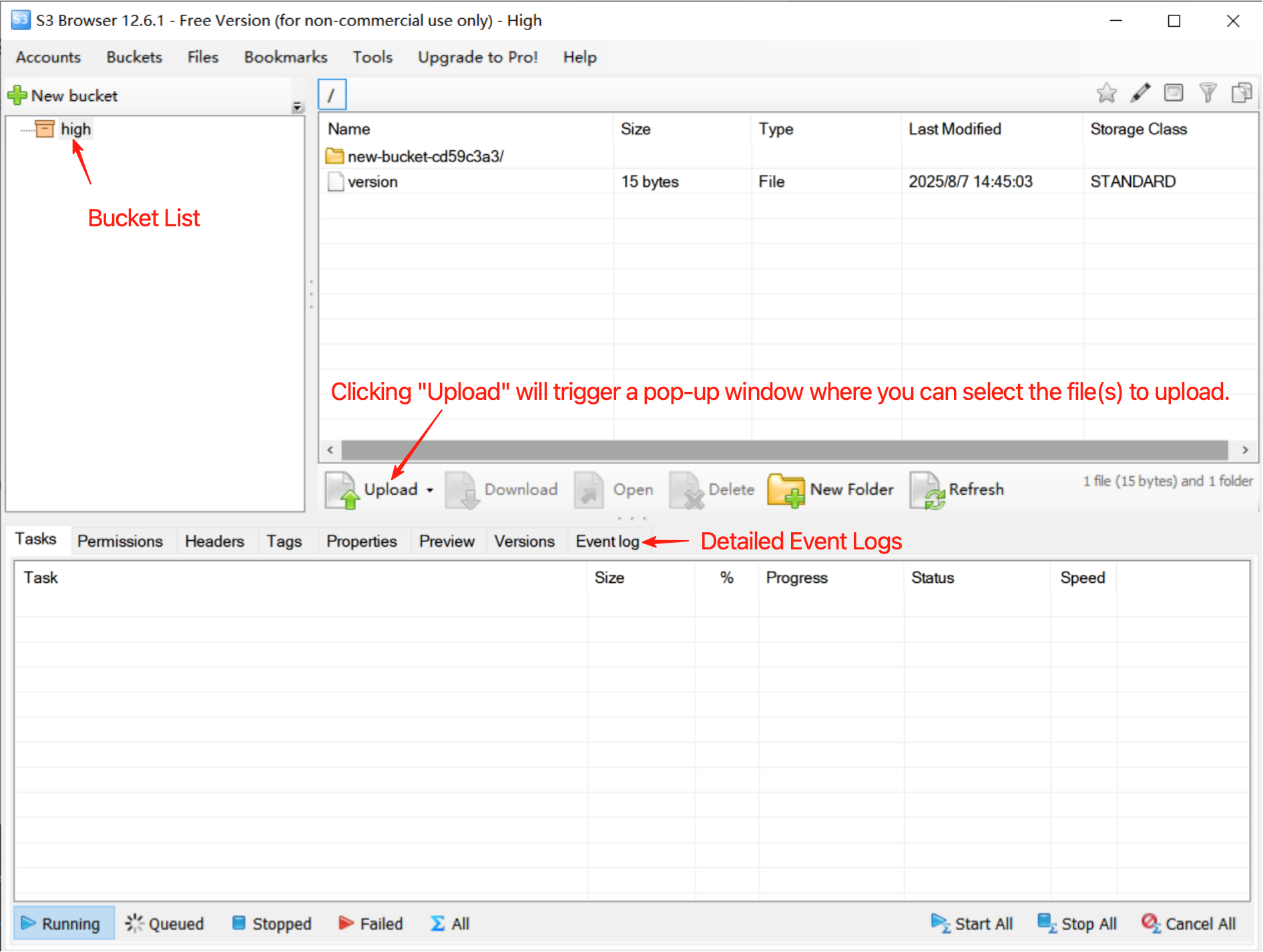

Upload & Download:
- Upload single files or entire directories from local storage.
- Select files/directories and click "Download" to download them.
Account & Bucket Management:
- Click "Manage accounts" to edit or delete account configurations.
- Use the "Buckets" option to create, delete, or refresh Buckets.

S3cmd

Introduction

S3cmd is a command-line tool for managing files in object storage services that support the S3 protocol. It provides capabilities such as uploading, downloading, syncing files, setting access permissions, and encryption. It’s often used for backups, automation scripts, and general object storage management.

Installation

On Linux, install the epel repository first.
Install Command: yum install s3cmd

Configuration

Configure authentication (Access Key/Secret Key), storage address, and Bucket:

cat << EOF > ~/.s3cfg
access_key = YOUR_ACCESS_KEY
secret_key = YOUR_SECRET_KEY
host_base = <Endpoint>
host_bucket = %(bucket)
use_https = False
EOF

Troubleshooting:
- If s3cmd fails with -bash: /usr/bin/s3cmd: /usr/bin/python2: bad interpreter: No such file or directory, modify the Python version:
  - Edit /usr/bin/s3cmd and change #!/usr/bin/python to #!/usr/bin/python2.7.

Common Commands

List Buckets: s3cmd ls
Create Bucket: s3cmd mb s3://$bucket_name
List Bucket Objects: s3cmd ls s3://$bucket_name
Upload File:
- Single file: s3cmd put $local_file s3://$bucket/$name
- Directory: s3cmd put --recursive dir1 dir2 s3://$bucket_name/somewhere/
- Sync: s3cmd sync dir1 dir2 s3://public.s3tools.org/somewhere/
Download File: s3cmd get s3://$bucket/$object
Delete File: s3cmd del s3://$bucket_name/$object
Help: s3cmd --help

EdgeNext OSS API

Overview

EdgeNext OSS (Object Storage Service) is a cloud storage service that offers massive, secure, low-cost, and highly reliable storage. You can use the simple REST interfaces provided in this document to upload and download data at any time, from any location, and on any internet-enabled device.

Terminology

Type	Description
Bucket	A bucket is a container for storing objects (Object), and all objects must belong to a bucket.
Object	An object is the basic unit of data storage in OSS, also known as a file in OSS. An object consists of metadata (Object Meta), user data (Data), and a filename (Key). Objects are uniquely identified by a Key within the bucket.
Region	A region indicates the physical location of the OSS data center. You can choose the region for data storage based on factors such as cost and request source.
Endpoint	The endpoint is the access domain name for OSS external services. OSS provides services in the form of HTTP RESTful APIs, and different domains are required when accessing different regions. The domains needed for internal and external access to the same region are also different.
AccessKey	AccessKey, abbreviated as AK, refers to the AccessKeyId and AccessKeySecret used in access authentication. OSS verifies the identity of the sender of a request by using symmetric encryption with AccessKeyId and AccessKeySecret. AccessKeyId is used to identify the user, and AccessKeySecret is the key used by the user to encrypt the signature string and by OSS to verify the signature string. AccessKeySecret must be kept confidential.

Compatible Signature Authentication

Compatible with the latest AWS Signature Version 4. For the signature method, see Authenticating Requests - AWS Signature Version 4.

API Examples

Service Operations

ListBuckets

Request

HTTP Method: GET
Endpoint: https://<Endpoint>/
Required Request Headers:
- Authorization:signature credentials
- Date: Request time
- Host: The S3 service endpoint address

Response

Successful Response: Returns a list of buckets in XML format

<?xml version="1.0" encoding="UTF-8"?>
<ListAllMyBucketsResult xmlns="http://s3.amazonaws.com/doc/2006-03-01/">
    <Owner>
        <ID>User Uid</ID>
        <DisplayName>Display Name</DisplayName>
    </Owner>
    <Buckets>
        <Bucket>
            <Name>example-bucket-01</Name>
            <CreationDate>timestamp</CreationDate>
        </Bucket>
        <Bucket>
            <Name>example-bucket-02</Name>
            <CreationDate>timestamp</CreationDate>
        </Bucket>
    </Buckets>
</ListAllMyBucketsResult>

Request Example

awscurl --service s3 --access_key <USER-ACCESS-KEY> --secret_key <USER-SECRET-KEY> https://<Endpoint>/

Bucket Operations

CreateBucket

Request

HTTP Method: PUT
Endpoint: https://<Bucket_Name>.<Endpoint>/
Required Request Headers:
- Authorization:signature credentials
- Date: Request time
- Host: The S3 service endpoint address

Response

Successful Response

Request Example

awscurl --service s3 --access_key <USER-ACCESS-KEY> --secret_key <USER-SECRET-KEY> -X PUT https://<Bucket_Name>.<Endpoint>/

ListObjects

Request

HTTP Method: GET
Endpoint: https://<Bucket_Name>.<Endpoint>
Required Request Headers:
- Authorization:signature credentials
- Date: Request time
- Host: The S3 service endpoint address

Response

Successful Response: Returns a list of objects in XML format

<?xml version="1.0" encoding="UTF-8"?>
<ListBucketResult xmlns="http://s3.amazonaws.com/doc/2006-03-01/">
    <Name>Bucket Name</Name>
    <Prefix></Prefix>
    <MaxKeys>1000</MaxKeys>
    <IsTruncated>false</IsTruncated>
    <Contents>
        <Key>example-object-01</Key>
        <LastModified>timestamp</LastModified>
        <ETag>string</ETag>
        <Size>long</Size>
        <StorageClass>string</StorageClass>
        <Owner>
            <ID>string</ID>
            <DisplayName>string</DisplayName>
        </Owner>
        <Type>Normal</Type>
    </Contents>
    <Contents>
        <Key>example-object-02</Key>
        <LastModified>timestamp</LastModified>
        <ETag>string</ETag>
        <Size>long</Size>
        <StorageClass>string</StorageClass>
        <Owner>
            <ID>string</ID>
            <DisplayName>string</DisplayName>
        </Owner>
        <Type>Normal</Type>
    </Contents>
    <Marker></Marker>
</ListBucketResult>

Request Example

awscurl --service s3 --access_key <USER-ACCESS-KEY> --secret_key <USER-SECRET-KEY> https://<Bucket_Name>.<Endpoint>

HeadBucket

Request

HTTP Method: HEAD
Endpoint: https://<Bucket_Name>.<Endpoint>/
Required Request Headers:
- Authorization:signature credentials
- Date: Request time
- Host: The S3 service endpoint address

Response

Successful Response

HTTP/1.1 200 OK
Date: Fri, 27 Jun 2025 08:42:24 GMT
Connection: keep-alive
Server: nginx/1.25.2
Content-Type: application/xml
Transfer-Encoding: chunked
x-amz-request-id: <string>
x-cc-via: i2289163_c27113[M,359]

Request Example

awscurl --service s3 --access_key <USER-ACCESS-KEY> --secret_key <USER-SECRET-KEY> -i https://<Bucket_Name>.<Endpoint>

DeleteBucket

Request

HTTP Method: DELETE
Endpoint: https://<Bucket_Name>.<Endpoint>/
Required Request Headers:
- Authorization:signature credentials
- Date: Request time
- Host: The S3 service endpoint address

Response

Successful Response

Request Example

awscurl --service s3 --access_key <USER-ACCESS-KEY> --secret_key <USER-SECRET-KEY> -X DELETE https://<Bucket_Name>.<Endpoint>

GetBucketPolicy

Request

HTTP Method: GET
Endpoint: https://<Bucket_Name>.<Endpoint>/?policy
Required Request Headers:
- Authorization:signature credentials
- Date: Request time
- Host: The S3 service endpoint address

Response

Successful Response: Returns the policy in JSON format

{
  "Statement": [
    {
      "Sid": "PUBLIC_READ_WRITE",
      "Effect": "Allow",
      "Principal": "*",
      "Action": ["s3:ListBucket", "s3:GetObject", "s3:PutObject", "s3:DeleteObject"]
    }
  ]
}

Request Example

awscurl --service s3 --access_key <USER-ACCESS-KEY> --secret_key <USER-SECRET-KEY> https://<Bucket_Name>.<Endpoint>/?policy

PutBucketPolicy

Request

HTTP Method: PUT
Endpoint: https://<Bucket_Name>.<Endpoint>/?policy
Required Request Headers:
- Authorization:signature credentials
- Date: Request time
- Host: The S3 service endpoint address
Policy Format:

{
  "Statement": [
    {
      "Sid": "PUBLIC_ALL",
      "Effect": "Allow",
      "Principal": "*",
      "Action": ["s3:*"]
    }
  ]
}

Response

Successful Response

Request Example

cat > public_all.json << EOF
{
  "Statement": [
    {
      "Sid": "PUBLIC_READ_WRITE",
      "Effect": "Allow",
      "Principal": "*",
      "Action": ["s3:*"]
    }
  ]
}
EOF
awscurl --service s3 --access_key <USER-ACCESS-KEY> --secret_key <USER-SECRET-KEY> -X PUT -d "@public_all.json" https://<Bucket_Name>.<Endpoint>/?policy

DeleteBucketPolicy

Request

HTTP Method: DELETE
Endpoint: https://<Bucket_Name>.<Endpoint>/?policy
Required Request Headers:
- Authorization:signature credentials
- Date: Request time
- Host: The S3 service endpoint address

Response

Successful Response

Request Example

awscurl --service s3 --access_key <USER-ACCESS-KEY> --secret_key <USER-SECRET-KEY> -X DELETE https://<Bucket_Name>.<Endpoint>/?policy

Object Operations

PutObject

Request

HTTP Method: PUT
Endpoint: https://<Bucket_Name>.<Endpoint>/<Object_Name>
Required Request Headers:
- Authorization:signature credentials
- Date: Request time
- Host: The S3 service endpoint address

Response

Successful Response

Request Example

awscurl --service s3 --access_key <USER-ACCESS-KEY> --secret_key <USER-SECRET-KEY> -X PUT -d "@public_all.json" https://<Bucket_Name>.<Endpoint>/<Object_Name>

GetObject

Request

HTTP Method: GET
Endpoint: https://<Bucket_Name>.<Endpoint>/<Object_Name>
Required Request Headers:
- Authorization:signature credentials
- Date: Request time
- Host: The S3 service endpoint address

Response

Successful Response

Request Example

awscurl --service s3 --access_key <USER-ACCESS-KEY> --secret_key <USER-SECRET-KEY> https://<Bucket_Name>.<Endpoint>/<Object_Name>

HeadObject

Request

HTTP Method: HEAD
Endpoint: https://<Bucket_Name>.<Endpoint>/<Object_Name>
Required Request Headers:
- Authorization:signature credentials
- Date: Request time
- Host: The S3 service endpoint address

Response

Successful Response

HTTP/1.1 200 OK
Server: nginx/1.25.2
Date: Thu, 05 Jun 2025 08:00:16 GMT
Content-Type: binary/octet-stream
Content-Length: 208
Content-Type: application/json
Connection: keep-alive
Accept-Ranges: bytes
Last-Modified: Thu, 05 Jun 2025 07:47:38 GMT
x-rgw-object-type: Normal
ETag: "2d4cb48137a5db1dae392a9bf3171055"
x-amz-request-id: tx0000052a343426e9dd415-0068414e90-462c-oss-as-central-5
Vary: Accept-Encoding
x-cc-via: i2315853_c27597[M,360]

Request Example

awscurl --service s3 --access_key <USER-ACCESS-KEY> --secret_key <USER-SECRET-KEY> -i https://<Bucket_Name>.<Endpoint>/<Object_Name>

DeleteObject

Request

HTTP Method: DELETE
Endpoint: https://<Bucket_Name>.<Endpoint>/<Object_Name>
Required Request Headers:
- Authorization:signature credentials
- Date: Request time
- Host: The S3 service endpoint address

Response

Successful Response

Request Example

awscurl --service s3 --access_key <USER-ACCESS-KEY> --secret_key <USER-SECRET-KEY> -X DELETE https://<Bucket_Name>.<Endpoint>/<Object_Name>

DeleteObjects

Request

HTTP Method: POST
Endpoint: https://<Bucket_Name>.<Endpoint>/?delete
Required Request Headers:
- Authorization:signature credentials
- Date: Request time
- Host: The S3 service endpoint address

Response

Successful Response

<?xml version="1.0" encoding="UTF-8"?>
<DeleteResult xmlns="http://s3.amazonaws.com/doc/2006-03-01/">
    <Deleted>
        <Key>example-object-01</Key>
    </Deleted>
    <Deleted>
        <Key>example-object-02</Key>
    </Deleted>
</DeleteResult>

Request Example

cat > delete.xml <<EOF
<?xml version="1.0" encoding="UTF-8"?>
<Delete>
  <Object><Key>example-object-01</Key></Object>
  <Object><Key>example-object-02</Key></Object>
</Delete>
EOF
awscurl --service s3 --access_key <USER-ACCESS-KEY> --secret_key <USER-SECRET-KEY> -X POST -d "@delete.xml" https://<Bucket_Name>.<Endpoint>/?delete

CopyObject

Request

HTTP Method: PUT
Endpoint: https://<Bucket_Name>.<Endpoint>/<Dist_Object_Name>
Required Request Headers:
- Authorization:signature credentials
- Date: Request time
- Host: The S3 service endpoint address

Response

Successful Response

<?xml version="1.0" encoding="UTF-8"?>
<CopyObjectResult xmlns="http://s3.amazonaws.com/doc/2006-03-01/">
    <LastModified>timestamp</LastModified>
    <ETag>string</ETag>
</CopyObjectResult>

Request Example

awscurl --service s3 --access_key <USER-ACCESS-KEY> --secret_key <USER-SECRET-KEY> -X PUT -H "x-amz-copy-source: /<Bucket_Name>/<Src_Object_Name>" https://<Bucket_Name>.<Endpoint>/<Object_Name>

Need help? Contact our support team at support@edgenext.com.

Back to documentation home

EdgeNext Documentation

EdgeNext OSS API User Guide

EdgeNext OSS API and S3 Client Usage Guide

S3 Client Usage

S3 Browser

Introduction

Download and Installation

Configuration

Usage

S3cmd

Introduction

Installation

Configuration

Common Commands

EdgeNext OSS API

Overview

Terminology

Compatible Signature Authentication

API Examples

Service Operations

ListBuckets

Bucket Operations

CreateBucket

ListObjects

HeadBucket

DeleteBucket

GetBucketPolicy

PutBucketPolicy

DeleteBucketPolicy

Object Operations

PutObject

GetObject

HeadObject

DeleteObject

DeleteObjects

CopyObject
